KIND Orbital robot camera


Today, the field of radio and television, new media and campus TV stations have extensive demand for intelligent shooting systems. With the continuous increase in labor costs, the scale of industry demand continues to expand, a serious shortage of professional and technical personnel, continuous innovation in automation and intelligence, high stability and high standards Reliable and low-cost broadcast-level intelligent shooting system has become a reality and has a wide market

The KIND orbital robot camera system enables photographers to obtain excellent shooting angles that cannot be achieved by traditional tripods and flat-bed rail cars, and provides a variety of lens materials for the composition of the final program. The translation, lifting, pushing, pulling, shaking, pitching, and tilting of the camera in this system are all controlled by the servo motor system, which makes the system have slow stop and slow start, uniform travel, and smooth speed change. Features.

The horizontal moving track of the KIND orbital robot camera system has a curved track and a straight track, and provides portable installation components and hoisting installation components. The shooting track increases data collection and can provide accurate data to the control system. The horizontal displacement repeatability reaches ±0.08mm , the repetition accuracy of vertical lifting displacement is ±0.01mm, precise data acquisition and control provide powerful data support for the intelligent shooting of KIND intelligent track shooting robot camera, so that the shooting track of the system can be prefabricated, stored and called, and realize the integration with the scene The intelligent pairing combination makes the photographer more relaxed and unhurried during the shooting, and the prefabricated best shooting trajectory lens is called in real time according to the shooting plan, reducing labor intensity and dependence on more professionals.

KIND track robot camera system consists of six parts: intelligent shooting track system, shooting lifting system, power supply and battery system, camera system, precise intelligent shooting control system, wireless audio and video transmission and real-time wireless control system.

KD-ZP30R Introduction

1. Camera: 4K broadcast grade PTZ camera;

2. Lifting: Precision three-stage ball screw servo electric cylinder lifting system;

3. Height: initial ≤700mm, stroke 800mm, repeat positioning accuracy ±0.01mm; speed: 250mm/s to 0.1mm/s, full servo stepless speed regulation;

4. Pulley cart: 4×1 silent track wheel, synchronous belt drive, full servo intelligent control movement, stepless speed regulation, repeat positioning accuracy ± 1mm, speed: 1000mm/s to 1mm/s;

5. Track: Intelligent shooting and splicing track, standard three bends and three straight, 6 meters in total;

6. Motor: one for lifting and one for translation, 48V/200W servo motor and electric control system;

7. Control keyboard: precise intelligent shooting trajectory control system and control keyboard;

8. Transmission: wireless real-time image transmission system, wireless control system;

9. Battery: 14.4V/28.8V 290Wh V-port battery × 2 (optional);

10. Installation: support mobile installation and fixed hoisting, and provide all installation parts;


Product Detail

Product Tags

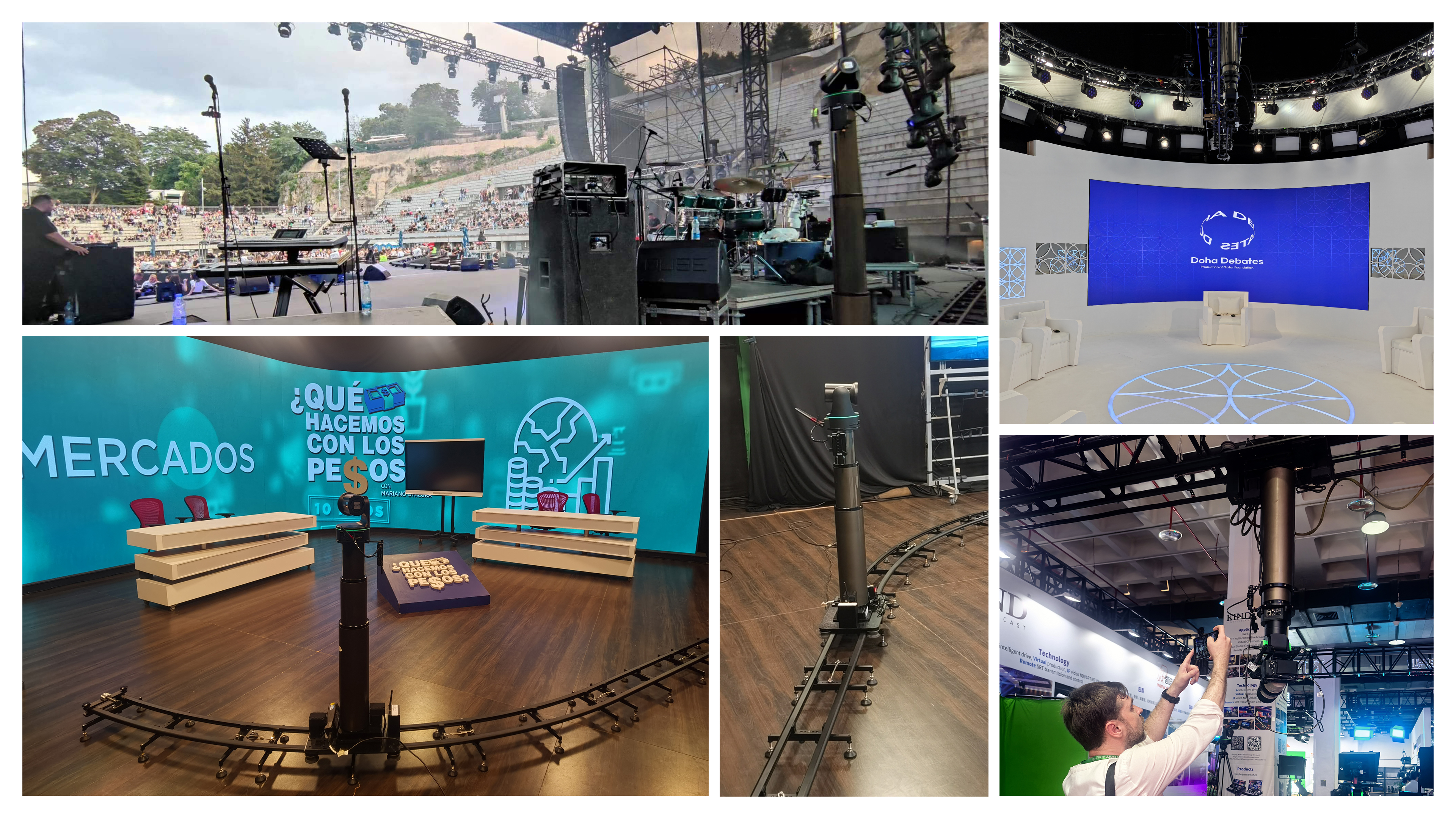

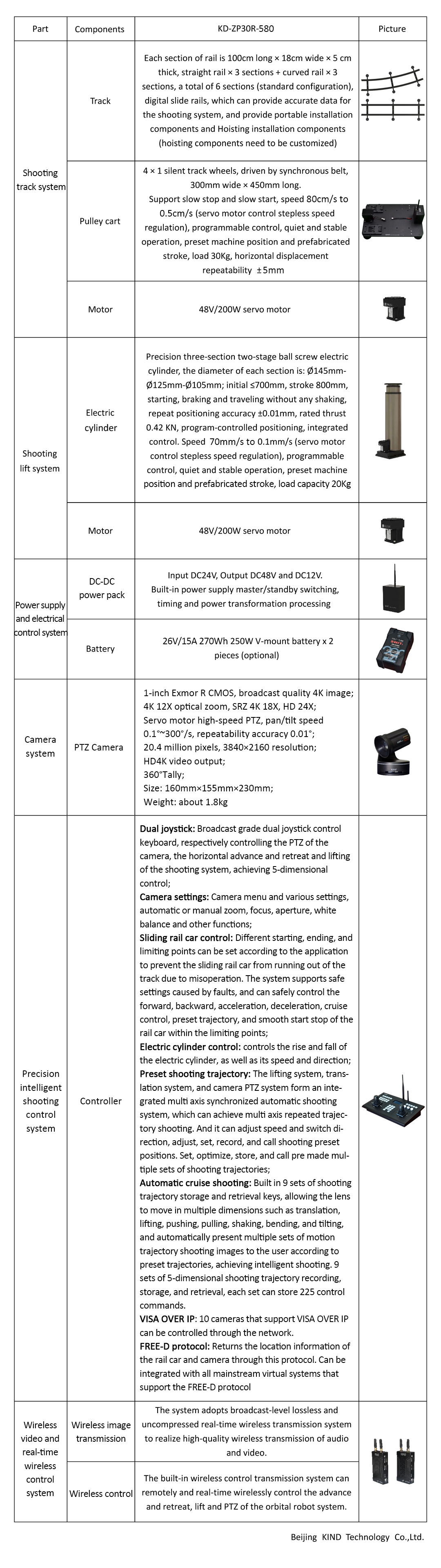

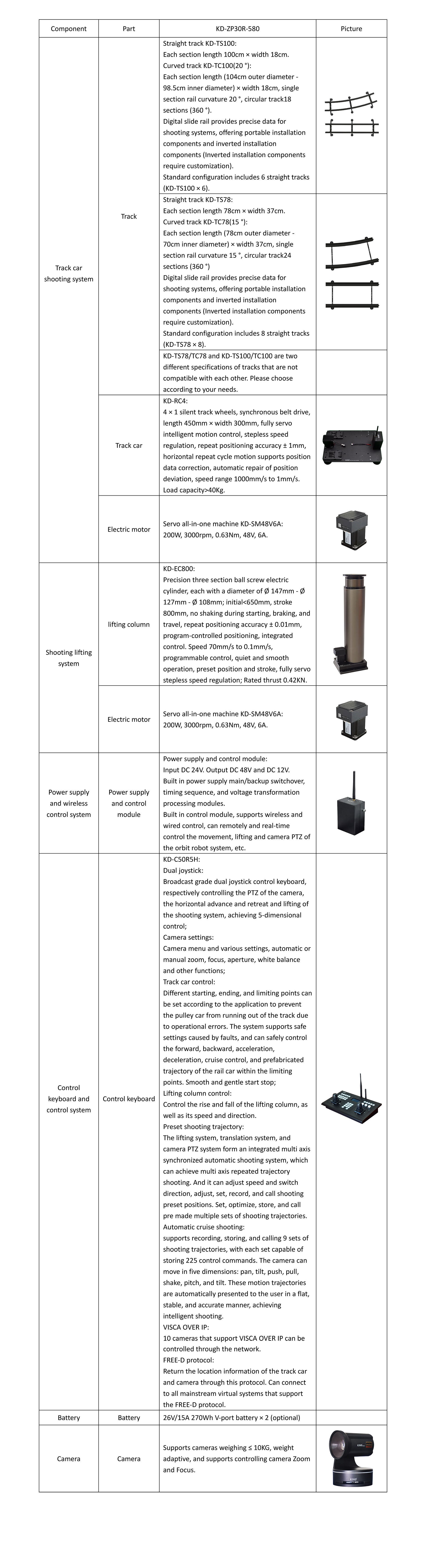

Product specification sheet.

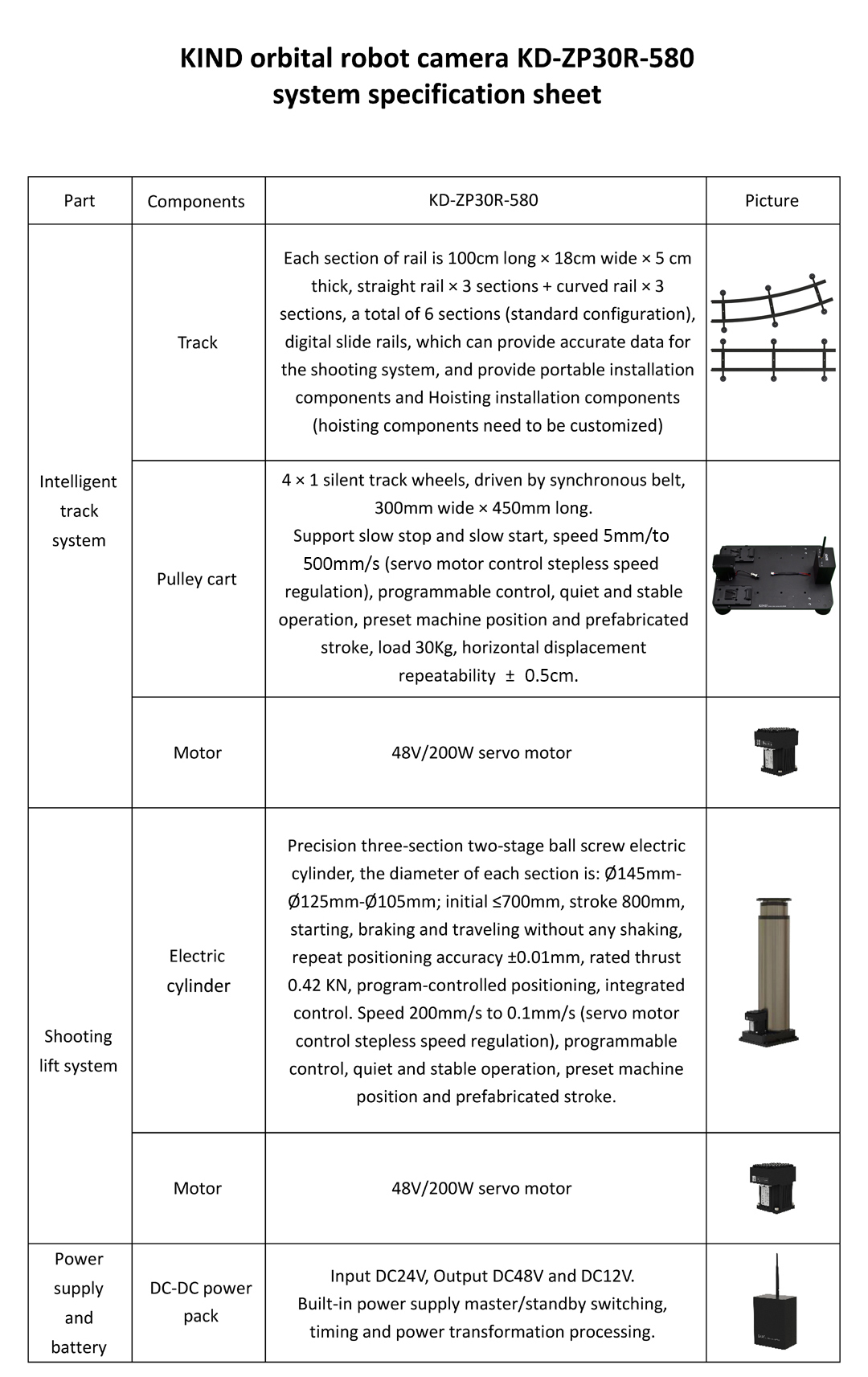

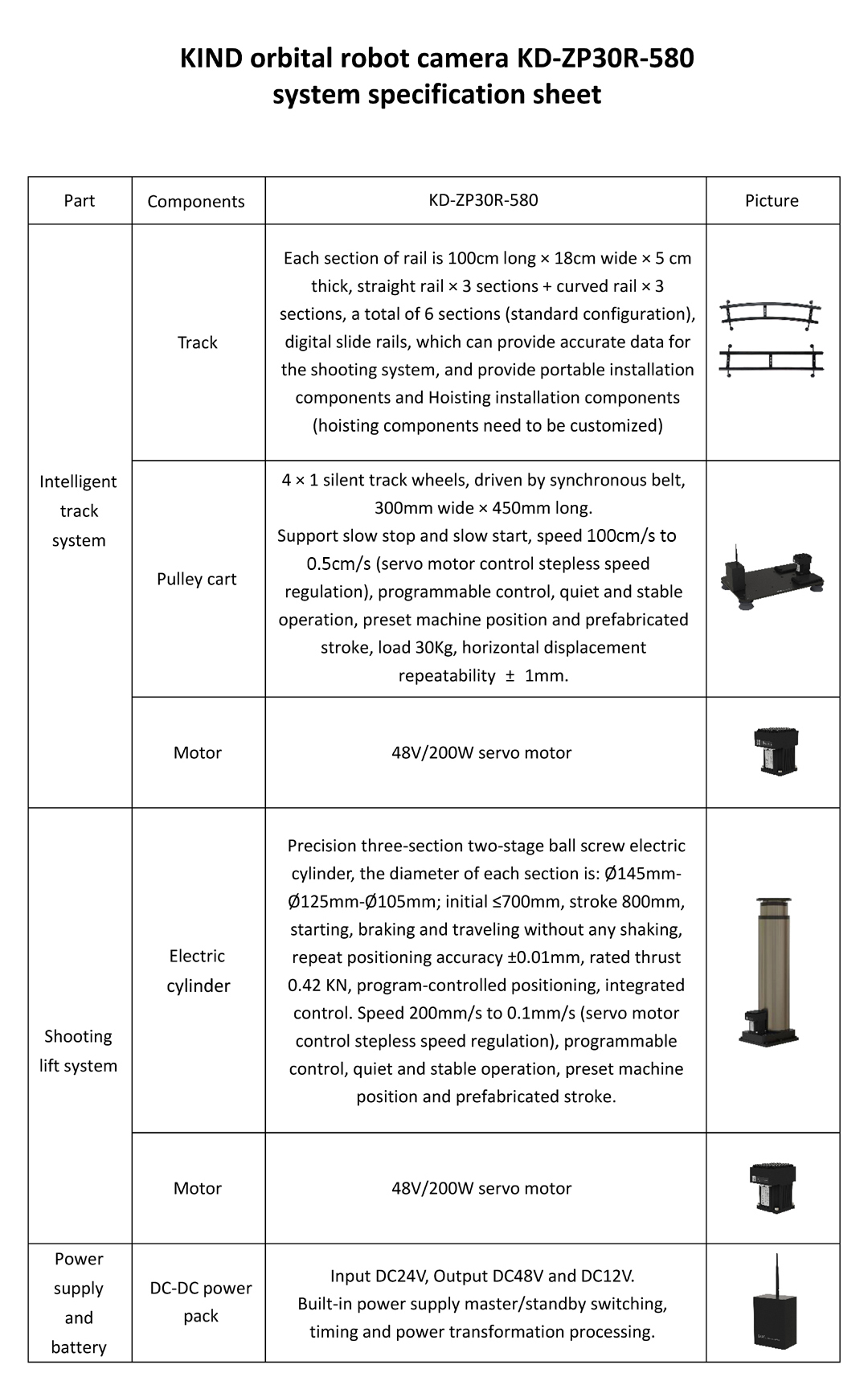

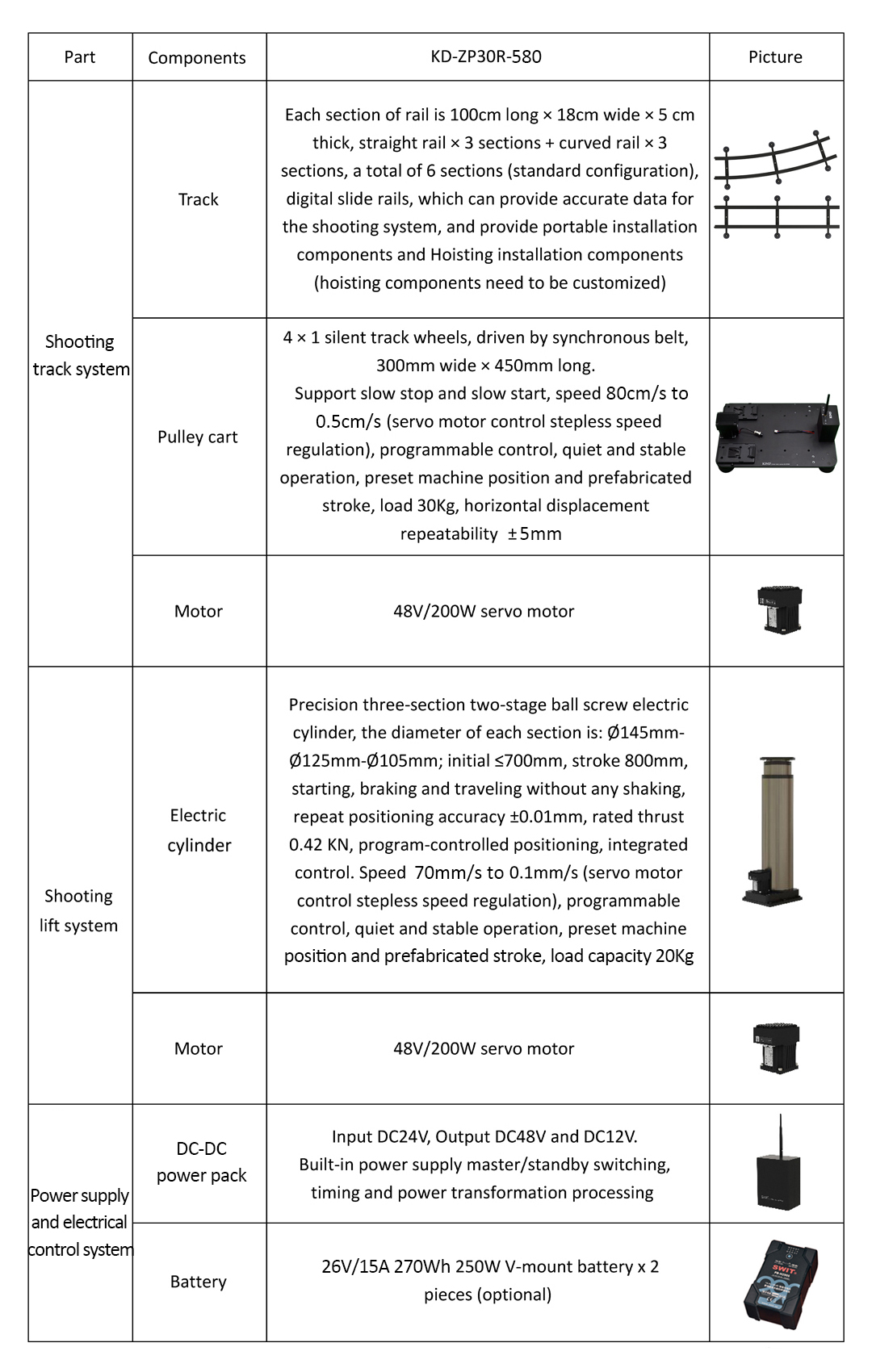

KIND orbital robot camera system specification sheet





Intelligent track system


Each section of rail is 100cm long x 18cm wide x 5 cm thick, straight rail x 3 sections + curved rail x 3 sections, a total of 6 sections (standard configuration), digital slide rails, which can provide accurate data for the shooting system, and provide portable installation components and Hoisting installation components (hoisting components need to be customized)


Pulley cart

4×1 silent track wheels, driven by synchronous belt, 300mm wide×450mm long.

Support slow stop and slow start, speed 1000mm/s to 1mm/s (servo motor control stepless speed regulation), programmable control, quiet and stable operation, preset machine position and prefabricated stroke, load 30Kg, horizontal displacement repeatability ± 1mm.



48V/200W servo motor


Shooting lift system

Electric cylinder

Precision three-section two-stage ball screw electric cylinder, the diameter of each section is: Ø145mm-Ø125mm-Ø105mm; initial ≤700mm, stroke 800mm, starting, braking and traveling without any shaking, repeat positioning accuracy ±0.01mm, rated thrust 0.42 KN, program-controlled positioning, integrated control. Speed 200mm/s to 0.1mm/s (servo motor control stepless speed regulation), programmable control, quiet and stable operation, preset machine position and prefabricated stroke.



48V/200W servo motor


Power supply and battery system

DC-DC power pack

Input DC24V.

Output DC48V and DC12V.

Built-in power supply master/standby switching, timing and power transformation processing.



14.4V/28.8V 290Wh 250W V-mount battery x 2 pieces (optional)

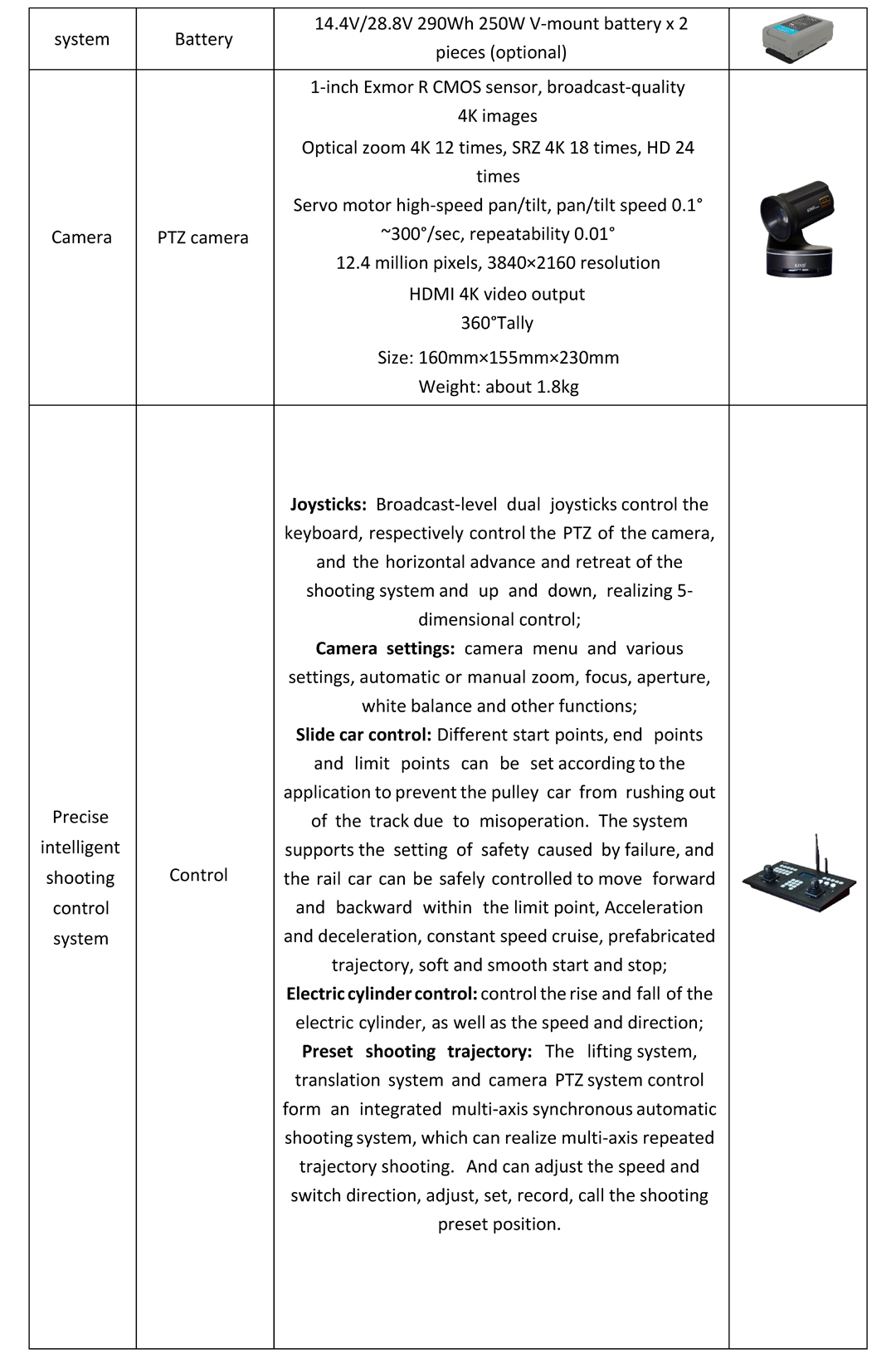

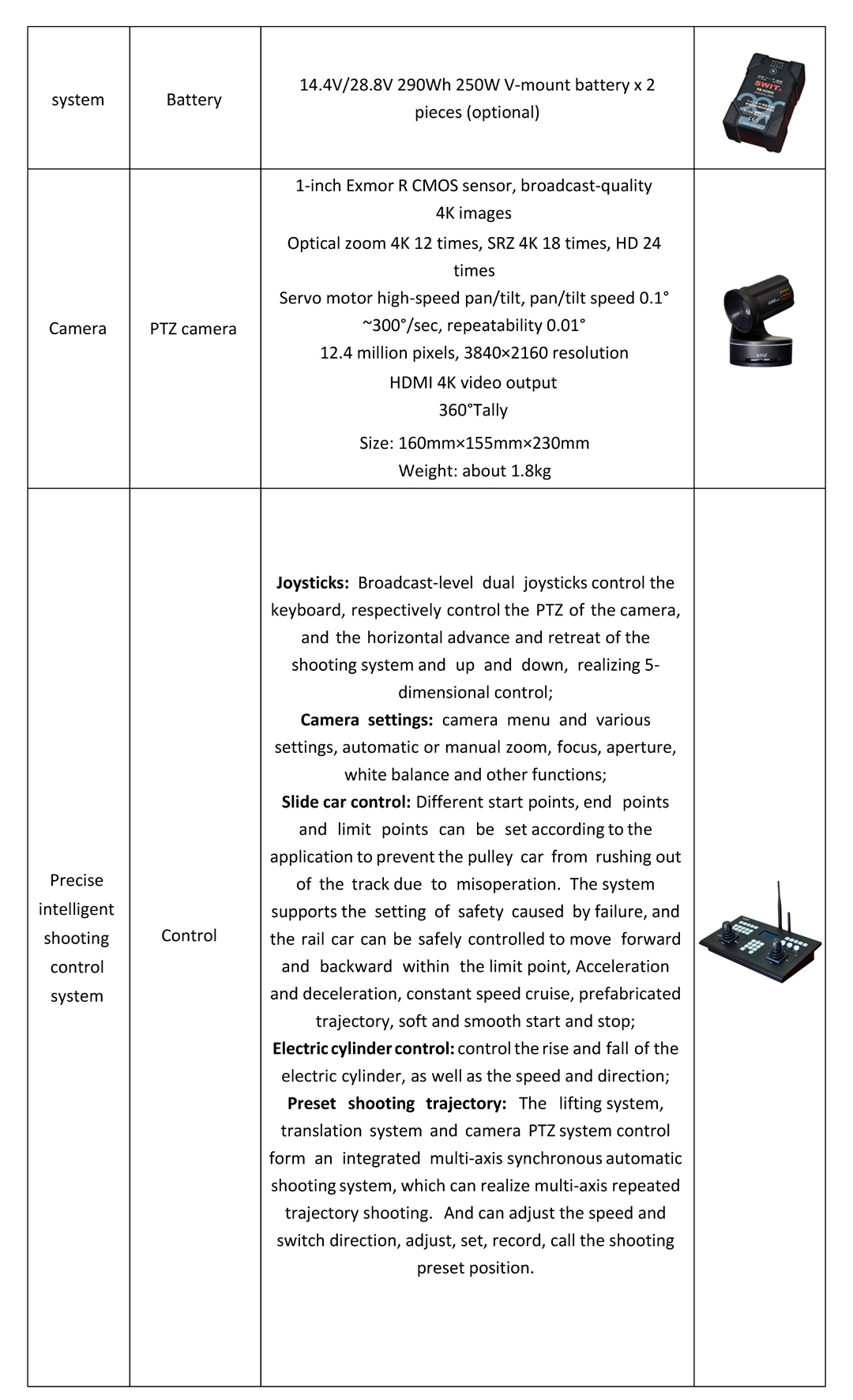

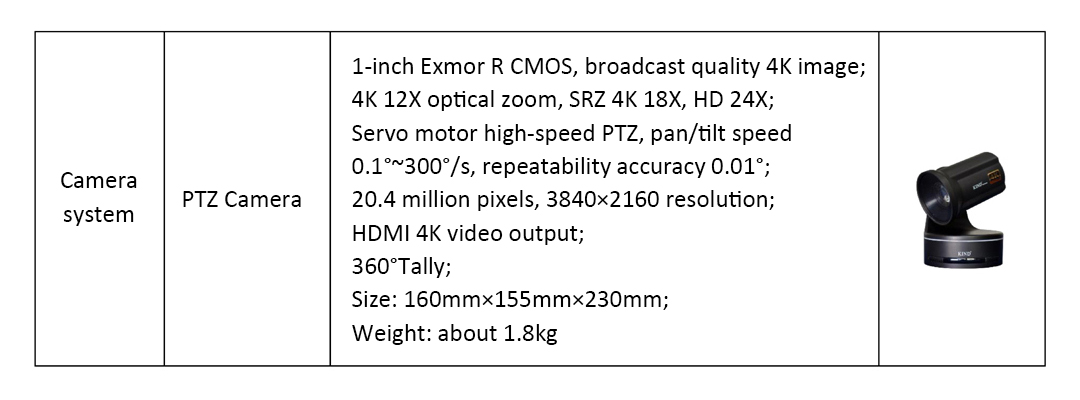

PTZ camera

1.1-inch Exmor R CMOS sensor, broadcast-quality 4K images;2.Optical zoom 4K 12 times, SRZ 4K 18 times; HD 24 times;3.Servo motor high-speed pan/tilt, pan/tilt speed 0.1°~300°/sec, repeatability 0.01°;4.12.4 million pixels, 3840×2160 resolution;5.HDMI 4K video output;6. 360°Tally;7.Size: 160mm×155mm×230mm;8.Weight: about 1.8kg;  6

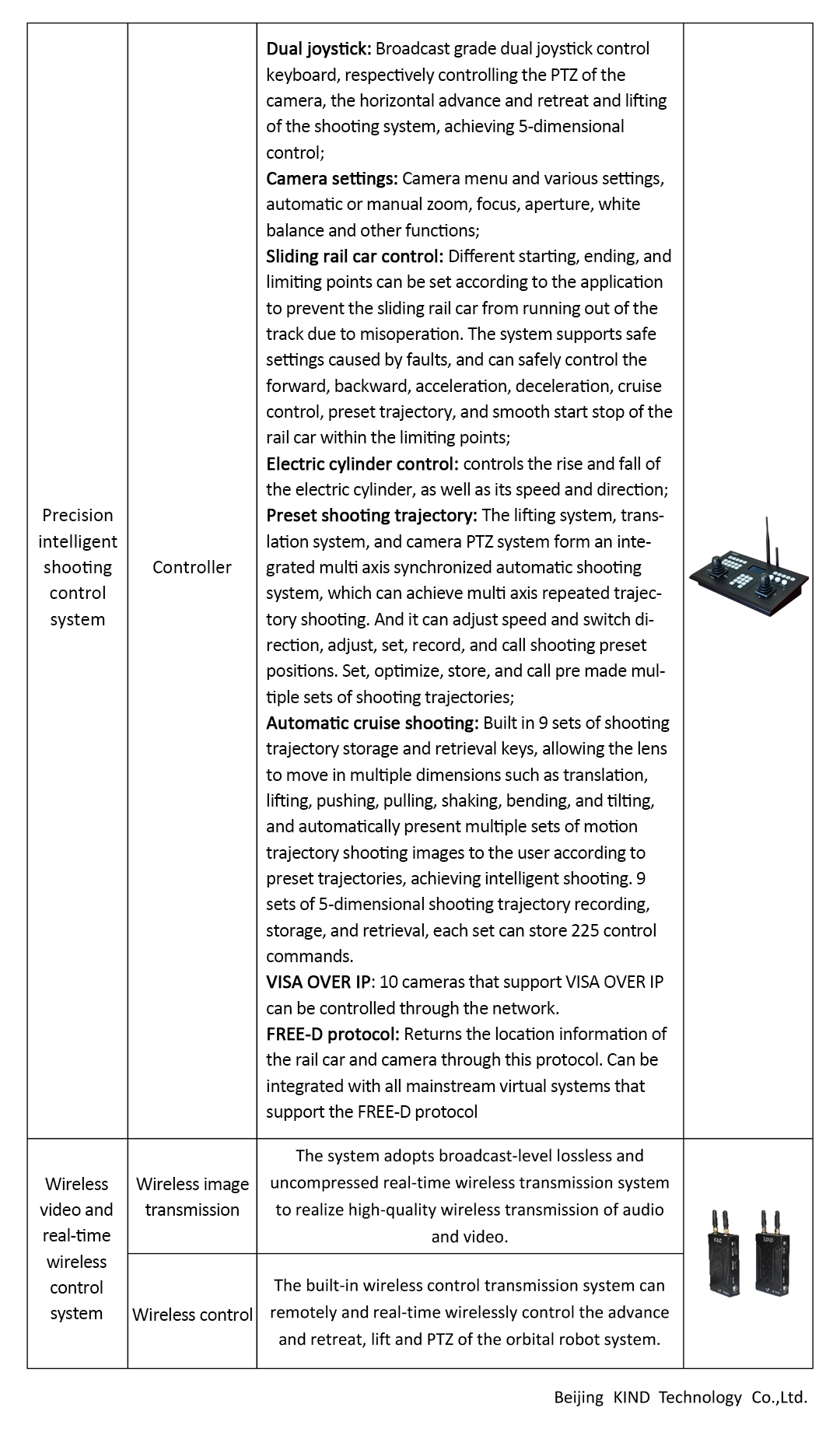

Precise intelligent shooting control system


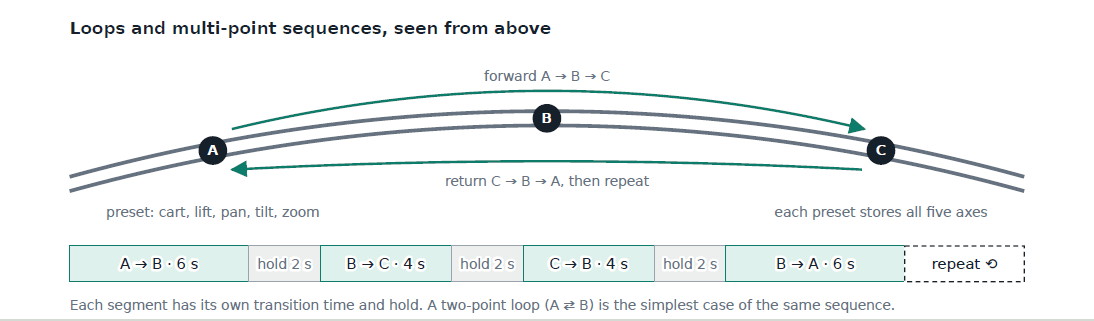

Joysticks: Broadcast-level dual joysticks control the keyboard, respectively control the PTZ of the camera, and the horizontal advance and retreat of the shooting system and up and down, realizing 5-dimensional control;Camera settings: camera menu and various settings, automatic or manual zoom, focus, aperture, white balance and other functions;Slide car control: Different start points, end points and limit points can be set according to the application to prevent the pulley car from rushing out of the track due to misoperation. The system supports the setting of safety caused by failure, and the rail car can be safely controlled to move forward and backward within the limit point , Acceleration and deceleration, constant speed cruise, prefabricated trajectory, soft and smooth start and stop;Electric cylinder control: control the rise and fall of the electric cylinder, as well as the speed and direction;Preset shooting trajectory: The lifting system, translation system and camera PTZ system control form an integrated multi-axis synchronous automatic shooting system, which can realize multi-axis repeated trajectory shooting. And can adjust the speed and switch direction, adjust, set, record, call the shooting preset position. Set, optimize, store and recall multiple sets of prefabricated shooting tracks;Automatic cruise shooting: Built-in 9 sets of shooting track storage and recall keys, allowing the lens to move, lift, push, pull, shake, pitch, look up in multiple dimensions, and shoot multiple groups of motion tracks in a flat, stable and accurate manner according to the preset track The screen is automatically presented to the user to realize intelligent shooting, 8 groups of 5-dimensional shooting trajectory recording, storage and recall, each group can store 256 control instructions.



Wireless video

and real-time wireless control system

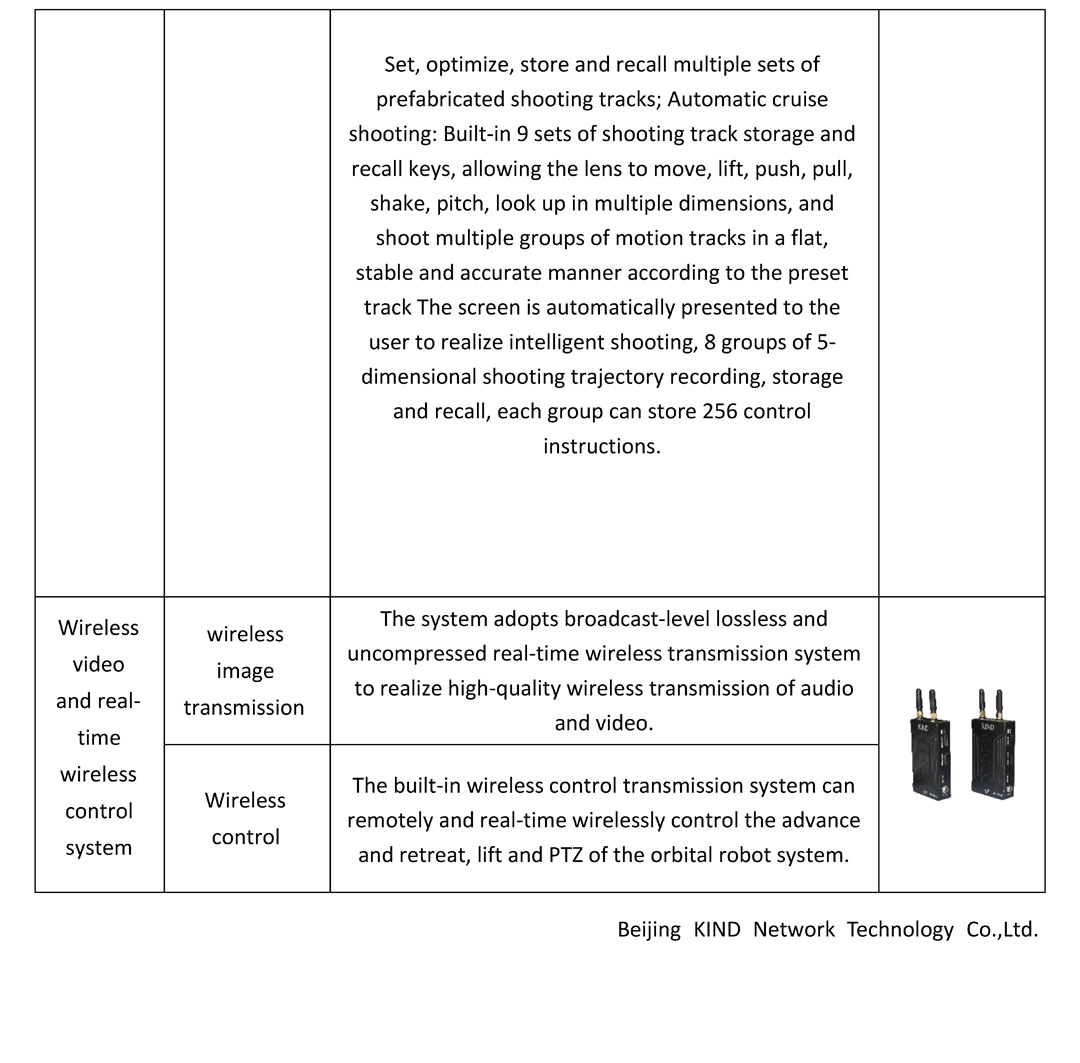

wireless image transmission

The system adopts broadcast-level lossless and uncompressed real-time wireless transmission system to realize high-quality wireless transmission of audio and video.


Wireless control

The built-in wireless control transmission system can remotely and real-time wirelessly control the advance and retreat, lift and PTZ of the orbital robot system.
